Yamaha XMAX YP125R - Service manual > General chassis

Removing the storage box

1. Remove:

• Storage box bolts "1"

TIP

Be sure not to let the storage box bolts fall inside the vehicle when removing them.

2. Remove:

• Storage box "1"

TIP

• Unhook the tabs "a" from the storage box.
• Remove the storage box by moving the seat hinge "2" in the direction of the arrow shown.

Installing the seat

1. Install:

• Safety protector

a. Fold the tabs on the safety protector so that the holes in each tab are aligned, and then fasten the tabs to the storage box with the quick fastener screws at the locations "a" shown in the illustration.

b. Install the storage box, seat lock cable, water guard, and mudguard to the vehicle.

c. Pass the license plate light coupler (license plate light side) through the hole in the safety protector at the location "b" shown in the illustration, and then connect the coupler.

d. Install the rear panels to the vehicle.

e. Align the holes in the safety protector with the projections on the water guard at the locations "c" shown in the illustration, and then fasten the safety protector with the clips at the locations where the holes are aligned with the projections.

TIP

Make sure that the edge of the safety protector is positioned to the inside of the rear panels at the location "d" shown in the illustration.

2. Install:

• Mudguard

Mudguard bolt

11 Nm (1.1 m*kgf, 8.0 ft*lbf) LOCTITE

TIP

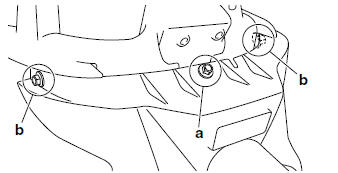

When tightening the mudguard bolts, tighten the center bolt "a" first, and then tighten the side bolts "b".

3. Install:

• Seat

Seat nut 10 Nm (1.0 m*kgf, 7.2 ft*lbf)

TIP

Tighten the seat nuts in the proper tightening sequence as shown.
