Vespa GTS 300 HPE - Owner's Manual > Digital lcd display

1. Fuel gauge with fuel pump symbol
2. Total and trip odometer/Km-miles
3. ASR system icon
4. Clock

When the ignition switch is turned to ON, all the functions of the digital display illuminate for a few seconds.

MULTIFUNCTION INDICATOR B

Press the MODE button briefly to cycle through the following indicator modes:

• Total Odometer (TOTAL)
• Trip odometer A (TRIP A)
• Trip odometer B (TRIP B)

To reset the trip odometers, select TRIP A or TRIP B then press and hold the MODE button. Press and hold the MODE button while in TOTAL odometer mode to access clock setting mode.

N.B.

THE FOLLOWING ARE DEFINED WHEN NAVIGATING THE DISPLAY:

• "BRIEF PRESS": A PRESS OF THE INDICATED BUTTON, FOR A PERIOD OF LESS THAN TWO SECONDS;
• "PROLONGED PRESS": A PRESS OF THE INDICATED BUTTON, FOR A PERIOD OF MORE THAN TWO SECONDS.

SELECTING KM OR MILES AS UNIT OF MEASUREMENT B

Press the MODE briefly to cycle through the modes and select TOTAL odometer mode, then turn the ignition switch to OFF.

Turn the ignition switch to ON while pressing and holding the MODE button.

Release the MODE button for 2 to 4 seconds.

WARNING

TO GO FROM "KM" TO "MILE" THE MULTIFUNCTION INDICATOR "C" MUST BE SET TO TOTAL ODOMETER (TOTAL).

CAUTION

FOR SAFETY, THIS SELECTION PROCEDURE IS ONLY PERMITTED AT A VEHICLE SPEED OF 0 KM/H.

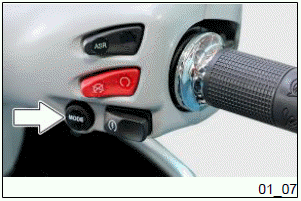

*MODE* button

Press the MODE button briefly and release to cycle through the following display functions:

• Total Odometer (TOTAL)
• Trip odometer A (TRIP A)
• Trip odometer B (TRIP B)

Press and hold the MODE button to:

• access the clock settings from the TOTAL odometer screen.
• reset the relative odometer reading in the TRIP A or TRIP B trip odometer screens.

N.B.

THE FOLLOWING ARE DEFINED WHEN NAVIGATING THE DISPLAY:

• "BRIEF PRESS": A PRESS OF THE INDICATED BUTTON, FOR A PERIOD OF LESS THAN TWO SECONDS;
• "PROLONGED PRESS": A PRESS OF THE INDICATED BUTTON, FOR A PERIOD OF MORE THAN TWO SECONDS.
