Precautions

Precautions for Driveline/Axle

Refer to "General Precautions".

Drive Chain / Drive Train / Drive Shaft

Diagnostic Information and Procedures

Drive Chain and Sprocket Symptom Diagnosis

Repair Instructions

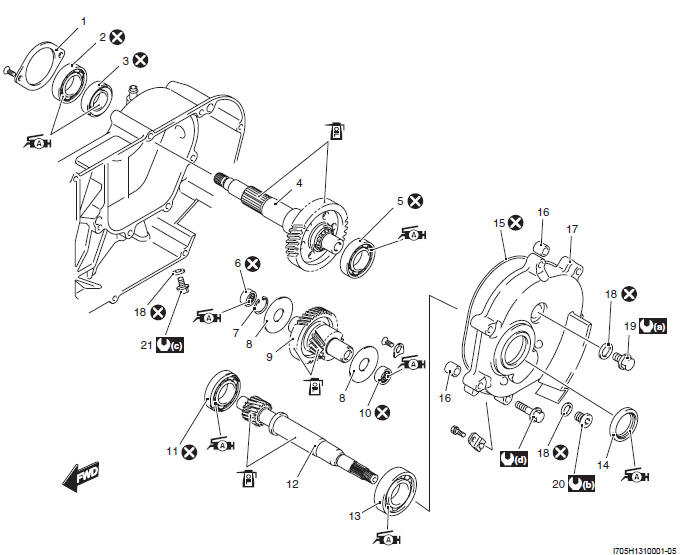

Final Gear Components

1. Bearing retainer
2. Bearing
3. Oil seal
4. Rear axle shaft
5. Bearing
6. Bearing
7. Snap ring
8. Washer
9. Idle shaft
10. Bearing
11. Bearing
12. Drive shaft
13. Bearing
14. Oil seal
15. O-ring
16. Dowel pin
17. Final gear cover
18. Gasket
19. Oil filler bolt
20. Oil level bolt
21. Oil drain bolt.

1. : 23 N*m (2.3 kgf-m, 16.5 lb-ft)
2. : 16 N*m (1.6 kgf-m, 11.5 lb-ft)
3. : 12 N*m (1.2 kgf-m, 8.5 lb-ft)
4. : 22 N*m (2.2 kgf-m, 16.0 lb-ft)

: Apply oil.

: Apply grease.

: Do not reuse.

• Final Gear Assembly Removal and Installation
• Final Gear Disassembly and Assembly
