PIAGGIO Beverly 300ie - Owner's Manual > Key switch

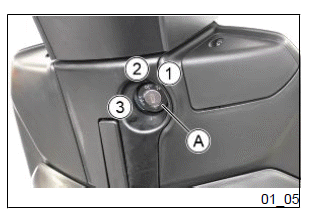

Ignition key "A" is located on the front leg shield back plate near the bag hook.

Vehicle

SWITCH POSITIONS

ON"1": Ready to start position, non-extractable key, mechanical antitheft device disabled.

OFF "2": Ignition disabled, extractable key, mechanical antitheft device disabled.

LOCK "3": Ignition disabled, extractable key, mechanical antitheft device enabled.

Locking the steering wheel

Vehicle

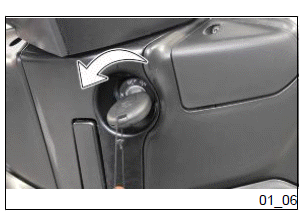

Turn the handlebar to the left (as far as it will go), turn the key to "LOCK" and remove the key.

Releasing the steering wheel

Vehicle

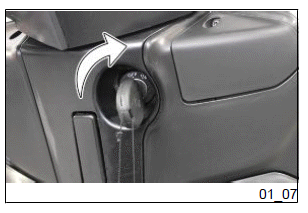

Reinsert the key and turn it to "OFF".

Switch direction indicators

Vehicle

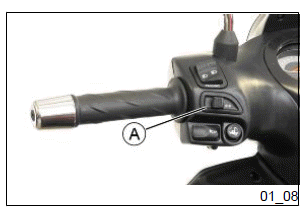

Move switch "A" to the left to indicate a left turn; move switch "A" to the right to indicate a right turn. Push the central part of switch "A" to deactivate the turn indicators.

Horn button

Vehicle

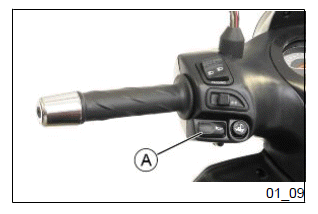

Press the "A" button to sound the horn.

Light switch

Vehicle

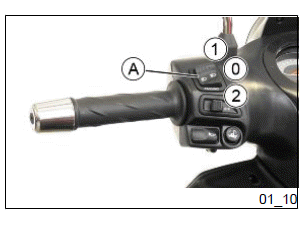

When the light switch "A" is in position "0" the low-beam light is ON; when it is in position "1" the high-beam light is ON. If the light switch "A" is pressed when set to "2", the high-beam light flashing is activated. The switch goes back to "0" automatically.

CAUTION

DO NOT CARRY ANY GARMENTS ON THE FRONT HEADLIGHT ASSEMBLY.

THIS MAY CAUSE BULBS TO OVERHEAT AND THEREFORE ABNORMAL WEAR.

Start-up button

Vehicle

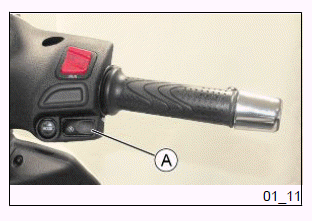

Starter button "A". To start the vehicle, refer to the "starter motor" section.

Engine stop button

Vehicle

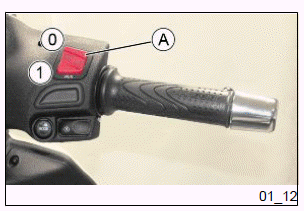

The engine can be started when the emergency stop switch "A" is in position "1" RUN; if the emergency stop switch "A" is in position "0" OFF the engine cannot be started or it stops if it was running.
