PIAGGIO Beverly 300ie - Service manual > Recommended products
AGIP GREASE PV2 Ivory smooth-textured, slightly-stringy anhydrous
calcium-base grease.
TL 9150 066, NATO G 460 symbol
Refitting
In order to fit the swinging arm properly, follow these steps:

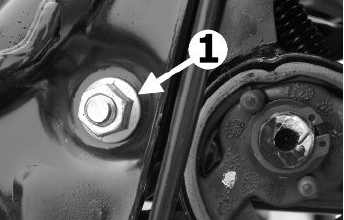

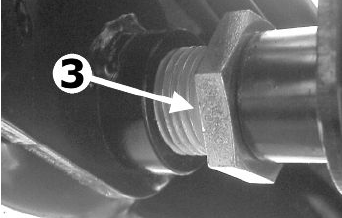

- Position the silent block support bracket with part "3 " pre-fitted and screw in but do not tighten part "1".

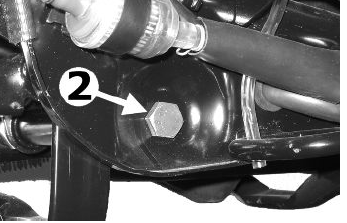

- Position the swinging arm, inserting part " 2".
- Tighten part "3" to the prescribed torque.

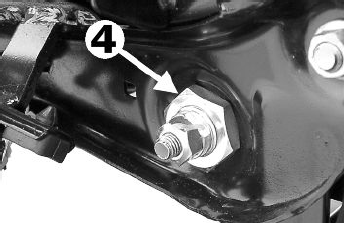

- Screw and tighten part "4" to the prescribed torque.

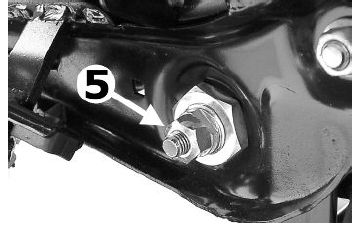

- Screw and tighten part "5" to the prescribed torque.

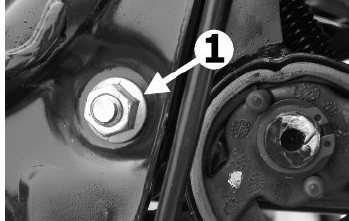

- Tighten part "1" to the prescribed torque.

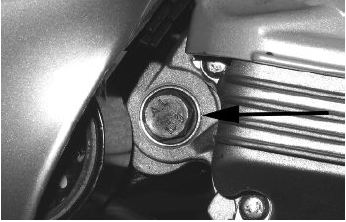

- Insert the swinging arm - engine pin and tighten to the prescribed torque.

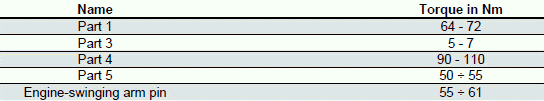

SWINGING ARM FITTING

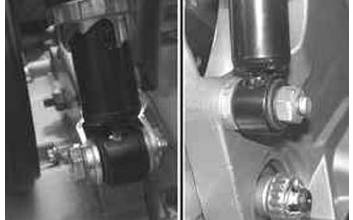

Shock absorbers
Removal
Proceed as follows:
- place the vehicle on its centre stand;
- lift the engine a little with a jack so as to free the two shock absorbers;
- remove the silencer
- undo the shock absorber spring assembly clamping screw from the support fixed to the engine on the one side and from that fixed to the silencer on the other;

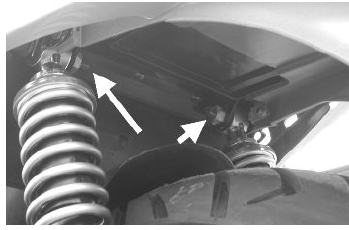

- unscrew the two upper nuts (one on each side) fixing the shock absorber spring assembly to the frame and remove the shock absorbers.
Refitting
Carry out the previous operations but in reverse order.
Locking torques (N*m)
Left shock absorber lower retainer 33 ÷ 41 Right shock absorber lower
retainer 40 ÷ 45 Upper shock absorber retainer 40 ÷ 45
