Suzuki Burgman 400 - Service manual > Repair Instructions
Combination Meter Components
- Lower case
- Combination meter
- Wind plate
- Upper case
Combination Meter Removal and Installation
Removal
1) Remove the meter panel.
Refer to "Meter Panel Removal and Installation".
2) Remove the combination meter assembly (1).
Installation
Install the combination meter in the reverse order of the removal.
Combination Meter Disassembly and Assembly
Refer to "Combination Meter Removal and Installation".
Disassembly
Disassemble the combination meter. Refer to "Combination Meter Components".
Assembly
Assemble the combination meter. Refer to "Combination Meter Components".
Combination Meter Inspection

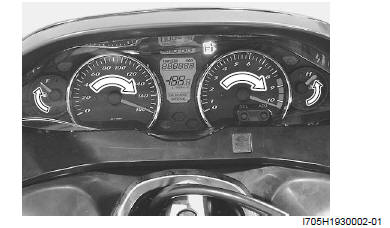

Check that the illumination LED on the meter panel lights up and the indicating needle each on fuel meter, speedometer, tachometer and coolant temperature sensor once moves to the maximum and then returns to the home position immediately after the ignition switch has been turned on.
At the same time, check that the FI lamp and each of the clock and multi-information meter segments turn on and thereafter go off to resume the normal display.
Check that the other LEDs (turn signal indicator, high beam indicator and brake-lock indictor) turn on with the respective switches operated. If the LED does not light up, inspect the wiring harness and connectors. If no abnormal condition is found, replace the combination meter.
Fuel Level Meter Inspection
Inspect the fuel level meter in the following procedures:
1) Remove the foot board and fuel pump coupler (1).
Refer to "Footboard Removal and Installation".
2) Check that the fuel level meter operates properly when a resistor is connected between the terminals of fuel pump wiring coupler (Y/B and B/W) on the wiring harness side. If any abnormal condition is noted, replace the combination meter.
NOTE
- Prior to the inspection, check that the fuel gauge is functioning properly.
- When reading the meter indication, wait at least 20 seconds after the resistor has been connected.
Fuel Level Gauge Inspection
Refer to "Fuel Level Gauge Inspection".
See also:
Suzuki Burgman 400 - Service manual > Speedometer Inspection
If the speedometer, odometer or trip meter does not function properly, inspect the speedometer sensor and connection of coupler. If the speedometer sensor and connection are all right, replace the meter with a new one.
