Suzuki Burgman 400 - Service manual > Schematic and Routing Diagram

Seat Lock Cable Routing Diagram

Exterior Parts

  1. Seat lock cable No. 1
  2. Seat lock cable No. 2
  3. Brake-lock cable
  4. Starter motor lead wire
  5. Clamp
    : Clamp the brake-lock cable, starter motor lead wire and seat lock cable.
  6. Seat lock cable
  1. Pass the seat lock cable No. 2 through front of the seat lock cable No. 1.
  2. Pass the seat lock cable No. 1 through inside of the frame.
  3. Pass the cables through inner side of the frame.
  4. Pass the cables through bottom and inner side of the frame.
  5. Seat lock cable set position
  6. Change set position only when seat locking or releasing is impossible.

Component Location

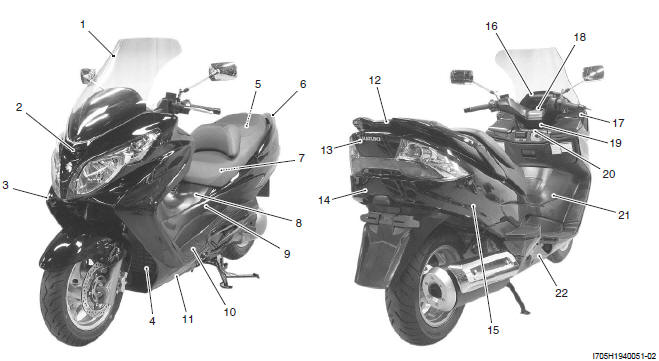

Exterior Components Location

Exterior Parts

  1. Wind screen
  2. Front leg shield cover
  3. Front leg shield
  4. Lower leg shield
  5. Helmet box
  6. Pillion rider handle
  7. Helmet box front cover
  8. Front frame cover
  9. Center leg cover
  10. Footboard
  11. Under cover
  12. Pillion rider handle cover
  13. Center frame cover
  14. Lower frame cover
  15. Frame cover
  16. Meter panel
  17. Upper meter panel
  18. Front handlebar cover
  19. Rear handlebar cover
  20. Front panel
  21. Front box
  22. Side leg shield

Removal Procedures Flow Chart

Exterior Parts
