Suzuki Burgman 400 - Service manual > Turn Signal / Side-stand Relay

Turn Signal / Side-stand Relay Inspection

Refer to "Electrical Components Location".

NOTE Make sure that the battery is fully charged.

Before removing the turn signal/side-stand relay, check the operation of the turn signal light.

If the turn signal light does not illuminate, inspect the bulb, turn signal switch and circuit connection.

If the bulb, turn signal switch and circuit connection are OK, the turn signal relay may be faulty; therefore, replace the turn signal/side-stand relay with a new one.

Refer to "Turn Signal / Side-stand Relay Removal and Installation ".

Turn Signal / Side-stand Relay Removal and Installation

Removal

1) Remove the meter panel. Refer to "Meter Panel Removal and Installation ".

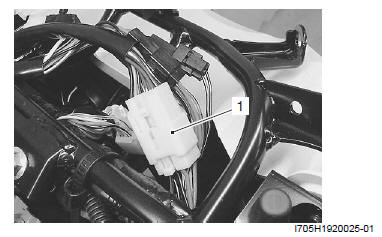

2) Remove the turn signal/side-stand relay (1).

Lighting Systems

Installation

Install the turn signal/side-stand relay in the reverse order of removal.

Dimmer Switch Inspection

Inspect the dimmer switch in the following procedures:

1) Remove the meter panel. Refer to "Meter Panel Removal and Installation".

2) Disconnect the left handlebar switch coupler (1).

Lighting Systems

3) Inspect the dimmer switch for continuity with the tester. If any abnormality is found, replace the left handlebar switch assembly with a new one. Refer to "Handlebars Removal and Installation".

Special tool : 09900-25008 (Multi-circuit tester set)

Tester knob indication
Continuity (
)

Lighting Systems

4) After finishing the dimmer switch inspection, reinstall the removed parts.

Turn Signal Switch Inspection

Inspect the turn signal switch in the following procedures:

1) Remove the meter panel. Refer to "Meter Panel Removal and Installation".

2) Disconnect the left handlebar switch coupler (1).

Lighting Systems

3) Inspect the turn signal switch for continuity with the tester. If any abnormality is found, replace the left handlebar switch assembly with a new one. Refer to "Handlebars Removal and Installation".

Special tool : 09900-25008 (Multi-circuit tester set)

Tester knob indication
Continuity (Lighting Systems)

Lighting Systems

4) After finishing the turn signal switch inspection, reinstall the removed parts.
