Suzuki Burgman 400 - Service manual > Lower Frame Cover Removal and Installation

Removal

Pull out the lower frame cover (1).

Installation

Push in the lower frame cover (1).

1. Hooked point

Frame Cover Removal and Installation

Removal

1) Remove the front frame cover, center leg covers, pillion rider handle, center frame cover and lower frame cover. Refer to "Front Frame Cover Removal and Installation", "Center Leg Cover Removal and Installation", "Pillion Rider Handle Removal and Installation", "Center Frame Cover Removal and Installation" and "Lower Frame Cover Removal and Installation".

2) Remove the fasteners and remove the footboard cover (1). (LH only)

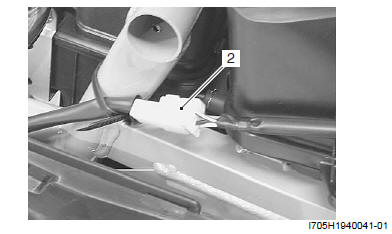

3) Disconnect the rear combination light coupler (2).

4) Remove the license plate light cover (3) and remove the left and right frame covers along with the rear combination light assembly.

5) Remove the frame covers (4) from the rear combination light assembly (5).

Installation

Install the frame covers in the reverse order of removal.

Helmet Box Removal and Installation

Removal

1) Remove the frame covers. Refer to "Frame Cover Removal and Installation".

2) Remove the mat (1).

3) Remove the helmet box by removing the seat lock bolt (2) and helmet box bolts.

Installation

Install the helmet box in the reverse order of removal.

Footboard Removal and Installation

Removal

1) Remove the side leg shields, front box and frame covers. Refer to "Side Leg Shield Removal and Installation", "Front Box Removal and Installation" and "Frame Cover Removal and Installation".

2) Remove the left and right footboards.

Installation

Install the footboard in the reverse order of removal.

Special Tools and Equipment

Recommended Service Material

NOTE Required service material is also described in the following.
