Suzuki Burgman 400 - Service manual > Side Leg Shield Removal and Installation

Removal

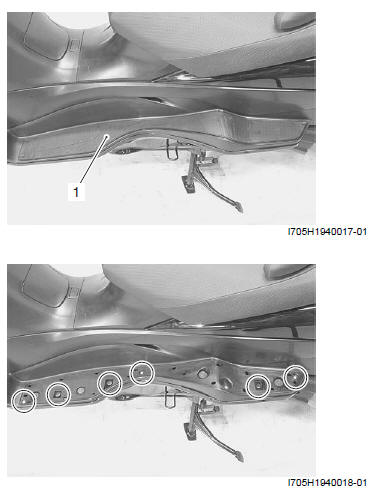

1) Remove the left and right rear floor mats (1), fasteners and screws.

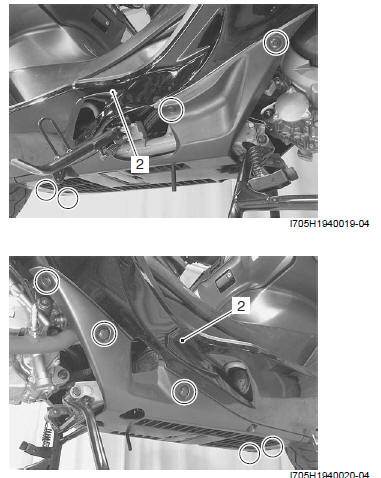

2) Remove the left and right side leg shields (2).

Installation

Install each of the side leg shield in the reverse order of removal.

Under Cover Removal and Installation

Removal

1) Remove the side leg shields. Refer to "Side Leg Shield Removal and Installation ".

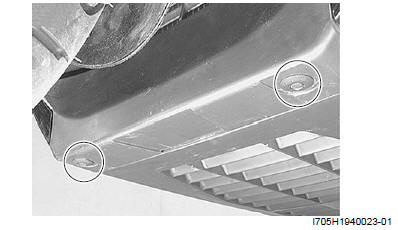

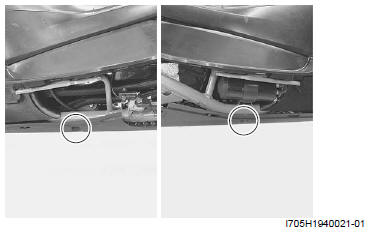

2) Remove the fasteners.

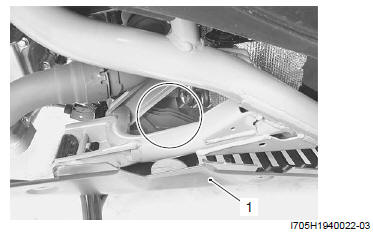

3) Remove the under cover (1).

Installation

Install the under cover in the reverse order of removal.

Lower Leg Shield Removal and Installation

Removal

1) Remove the front leg shield. Refer to "Front Leg Shield Removal and Installation".

2) Remove the fasteners.

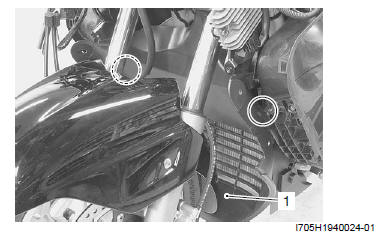

3) Remove the lower leg shield (1).

Helmet Box Front Cover Removal and Installation

Removal

1) Open the seat.

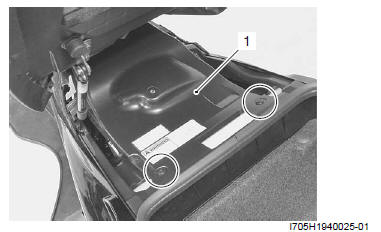

2) Remove the helmet box front cover (1).

Installation

Install the helmet box front cover in the reverse order of removal.

Front Frame Cover Removal and Installation

Removal

1) Remove the helmet box front cover. Refer to "Helmet Box Front Cover Removal and Installation".

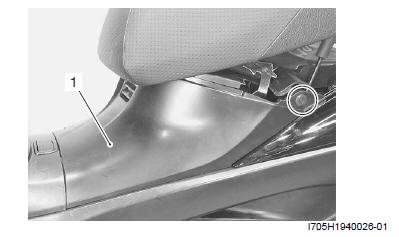

2) Remove the front frame cover (1).

Installation

Install the front frame cover in the reverse order of removal.

Seat Removal and Installation

Removal

1) Remove the front frame cover. Refer to "Front Frame Cover Removal and Installation".

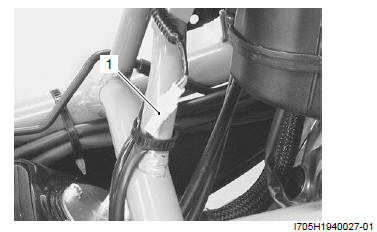

2) Disconnect the helmet box light coupler (1).

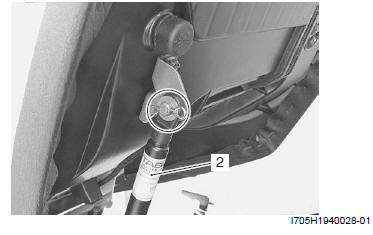

3) Disengage the seat damper (2).

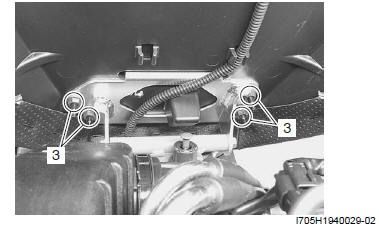

4) Remove the seat by removing the nuts (3).

Installation

Install the seat in the reverse order of removal.
